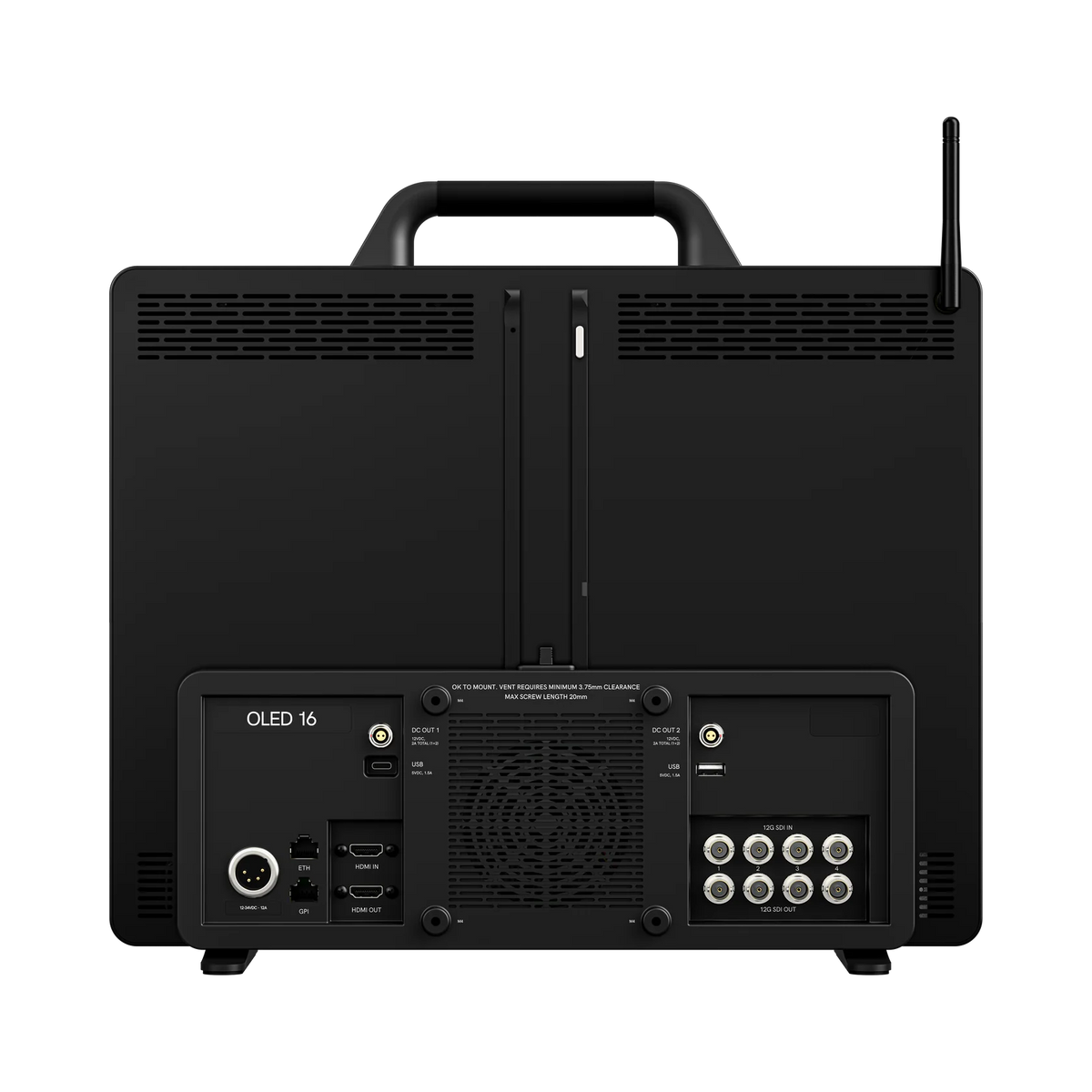

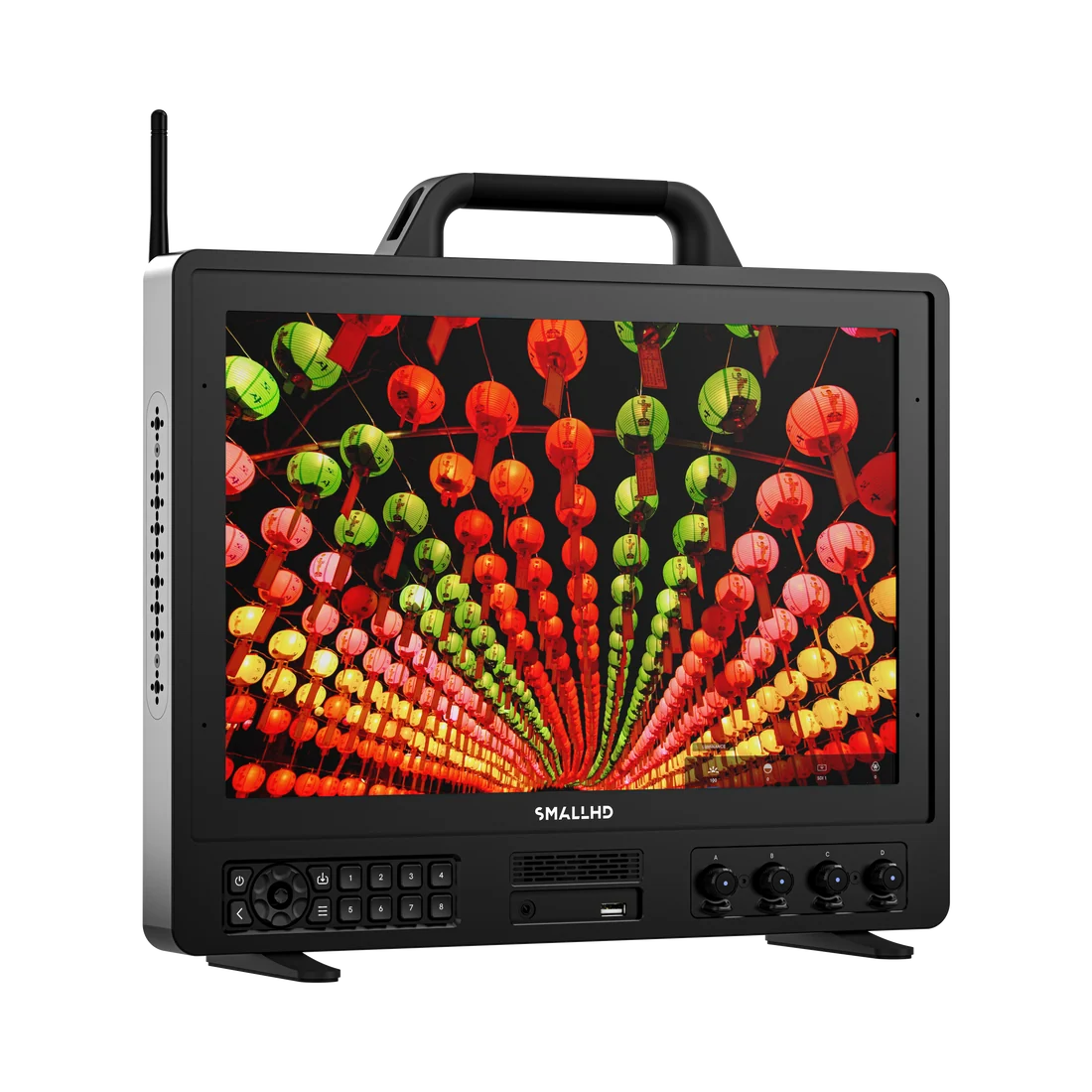

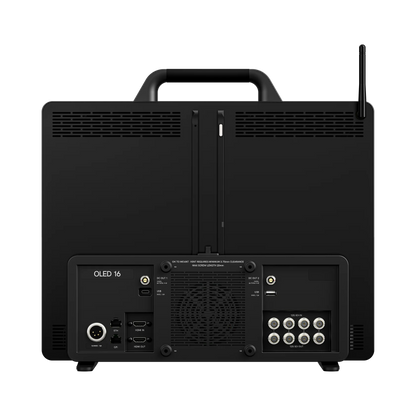

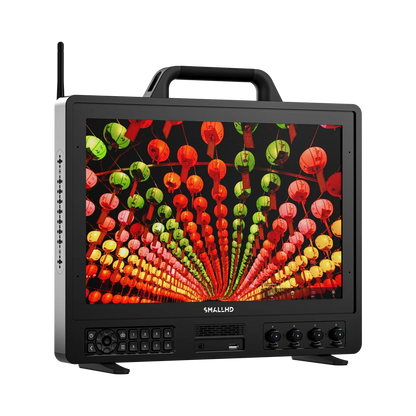

SmallHD OLED 16 16-Inch 4K Production Monitor

The SmallHD OLED 16 is a professional 16-inch OLED production monitor designed for cinematographers, camera operators, directors, DITs, and video production teams who need accurate image monitoring on set.

Combining OLED image quality with professional 12G-SDI connectivity, HDMI input and output, and SmallHD's advanced monitoring tools, the OLED 16 provides a versatile monitoring solution for demanding film, television, and broadcast production environments.

With its large 16-inch OLED display, the monitor delivers deep blacks, rich contrast, and detailed image reproduction for evaluating exposure, focus, colour, and composition. Its professional connectivity supports integration into camera systems, video village setups, and production monitoring workflows.

Available from Pro Video Global, a Singapore-based professional video equipment supplier offering worldwide shipping.

Key Features

• 16-Inch OLED Display: OLED technology provides deep blacks, high contrast, and detailed image reproduction for professional monitoring.

• Professional 12G-SDI Connectivity: Four 12G-SDI BNC inputs and four 12G-SDI BNC outputs support professional video signal routing.

• HDMI Connectivity: Full-size HDMI Type-A input and output for compatible cameras and video equipment.

• Professional Monitoring Tools: SmallHD monitoring software provides tools for evaluating image quality and supporting on-set workflows.

• 3D LUT Support: Supports multiple 33-point 3D LUTs for input processing, output processing, and calibration workflows.

• Integrated Audio Monitoring: Monitor audio through the front-bezel speakers or headphone output, with metering for up to eight channels.

• Production Power Options: Supports 12–34V DC power through a 4-pin XLR input and optional dual Gold Mount or V-Mount battery plate.

• Camera and Accessory Power: Provides power outputs for compatible accessories, including 12V locking outputs and USB power.

• Professional Control and Connectivity: Includes Ethernet, GPI, USB, and wireless connectivity for supported production workflows.

Professional OLED Monitoring for Film and Broadcast

The SmallHD OLED 16 is designed for production environments where image evaluation and professional video connectivity are essential.

Its 16-inch OLED display provides a larger viewing area than typical on-camera monitors, making it suitable for director monitoring, video village, camera departments, and DIT workflows.

The four 12G-SDI inputs and four 12G-SDI outputs allow the monitor to integrate into professional SDI production systems. HDMI connectivity provides an additional option for compatible cameras and video sources.

For colour-critical work, supported 3D LUT and calibration tools help production teams apply monitoring looks and maintain consistent image evaluation across workflows. Final colour accuracy depends on calibration, the selected display settings, and the source signal.

Technical Specifications

Specification	Details
Product	SmallHD OLED 16
Display Size	16 inches
Display Technology	OLED
SDI Input	4 × BNC 12G-SDI
SDI Output	4 × BNC 12G-SDI
HDMI Input	1 × full-size HDMI Type-A
HDMI Output	1 × full-size HDMI Type-A
Audio Monitoring	Integrated speakers and 3.5mm headphone jack
Audio Metering	Up to 8 channels
LUT Support	33-point 3D LUT support
Power Input	4-pin XLR, 12–34V DC
Maximum Power Input	143W
Battery Compatibility	Optional dual Gold Mount or V-Mount battery plate
Power Outputs	2 × 2-pin locking 12V outputs, USB power
Data Connectivity	Ethernet, GPI, USB, 2.4GHz WLAN

Power and Production Integration

The OLED 16 supports professional production power requirements through its 4-pin XLR DC input. It can also be configured with an optional dual Gold Mount or V-Mount battery plate, depending on the production setup.

The monitor provides power outputs for compatible accessories, including two locking 12V DC outputs and USB power. Check the combined power limits and the requirements of connected equipment before use.

For production teams using SDI-based camera systems, the monitor's multiple 12G-SDI inputs and outputs support integration into a professional signal chain. HDMI connectivity is also available for compatible video sources.

Why Buy from Pro Video Global?

Pro Video Global supplies professional video and broadcast equipment from Singapore to customers worldwide.

• Professional video equipment supplier based in Singapore

• Worldwide shipping for international customers

• Equipment sourcing for production companies, broadcasters, and resellers

• Assistance with product selection and professional video workflow compatibility

Contact Pro Video Global for SmallHD OLED 16 pricing, availability, shipping arrangements, and professional equipment sourcing.

Frequently Asked Questions

What is the SmallHD OLED 16 used for?

The SmallHD OLED 16 is a 16-inch professional production monitor used for camera monitoring, director viewing, video village, and film and broadcast production workflows.

Does the SmallHD OLED 16 support 12G-SDI?

Yes. It features four 12G-SDI BNC inputs and four 12G-SDI BNC outputs for professional SDI video connectivity.

Does the SmallHD OLED 16 have HDMI?

Yes. It includes one full-size HDMI Type-A input and one HDMI Type-A output for compatible video equipment.

Can the SmallHD OLED 16 run on batteries?

Yes. It supports an optional dual Gold Mount or V-Mount battery plate. It also accepts 12–34V DC through its 4-pin XLR power input.

Where can I buy the SmallHD OLED 16 in Singapore?

Contact Pro Video Global for pricing and availability. Pro Video Global supplies professional video equipment from Singapore and offers worldwide shipping for international customers.
