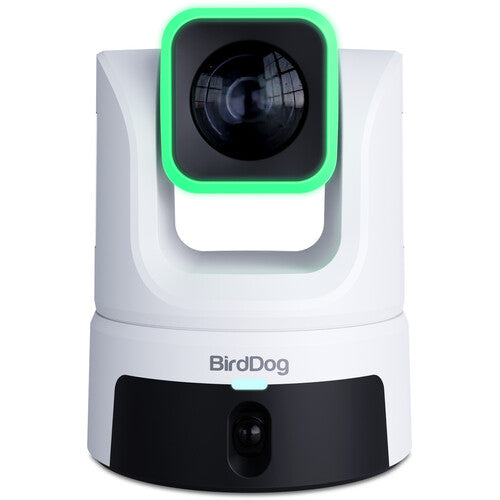

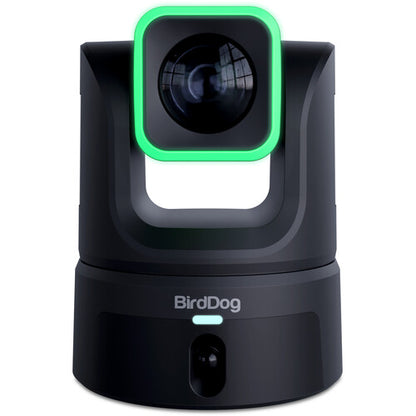

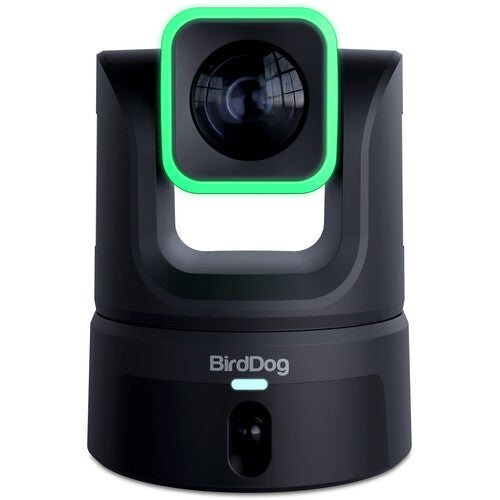

BirdDog XL Ultra PTZ Camera

Overview

The BirdDog XL Ultra is a professional PTZ camera designed for broadcast, virtual production, and premium AV environments. Equipped with a 4/3″ CMOS sensor, dual 4K60 cameras, and advanced AI tracking, it delivers cinematic image quality with precision control. XL Ultra is engineered for studios, XR stages, LED walls, and high-end production workflows requiring reliability, flexibility, and performance.

---

Key Capabilities

Large-Format Sensor for Cinematic Imaging

The XL Ultra features a 4/3″ CMOS sensor, commonly used in professional digital cameras. Paired with a 20x optical zoom lens (40x in HD mode), it provides:

• Exceptional depth of field

• Accurate, sharp image capture

• Enhanced low-light performance

This ensures professional-grade footage suitable for high-end broadcast and virtual production.

---

Dual Cameras for Maximum Coverage

The XL Ultra includes a second 100° panoramic camera with a 1/1.8″ sensor. Both cameras operate at 4K60 and can be independently controlled. Output options include:

• NDI® for both cameras simultaneously

• SRT, RTSP, RTMP, HDMI, or 3G-SDI for the wide-angle camera

This dual-camera setup enables flexible workflows for multi-camera production, streaming, and live events.

---

AI Tracking for Natural Camera Motion

XL Ultra integrates a next-generation AI tracking engine that replicates human camera operation. Features include:

• Adjustable speed, style, and sensitivity

• Automatic tracking of speakers, performers, or panels

• Reduced operator workload while maintaining broadcast-quality motion

---

Streamlined Multi-Protocol Output

• Supports NDI® High Bandwidth and NDI®|HX simultaneously

• Each camera lens outputs independently, over separate protocols if required

• Ready for NDI 6.1 with support for 6.2 and beyond

This ensures full-quality production feeds alongside remote, bandwidth-friendly streams.

---

Flexible Mounting and Studio Integration

• Optional XL Mount System provides professional stability

• Supports truss, ceiling, tripod, or studio grid installation

• Includes 1/4″-20, 3/8″, and safety anchor points

• Cable management designed for clean studio deployment

---

Color Profiles and Workflow Integration

• Multiple color profiles tuned for professional production environments

• Ensures consistent image quality across multi-camera setups

• Integrates seamlessly into existing broadcast and virtual production pipelines

---

Control Options

• NDI® PTZ Control via iPad/iPhone: Full camera control, pre-set recall, and color adjustments

• BirdUI Browser Interface: Access all camera functions on the same network, with dashboard monitoring and light/dark modes

---

Warranty & Support

• 5-year global warranty

• Advance replacement in supported regions

• Enterprise-level support to ensure uninterrupted operations

---

Typical Applications

• Broadcast and live events

• Virtual production and XR stages

• Studio environments with LED walls

• High-end AV and premium production workflows

• Multi-camera production and streaming setups

---

Specifications Summary

• Primary Sensor: 4/3″ CMOS

• Secondary Sensor: 1/1.8″ panoramic

• Resolution: 4K60

• Zoom: 20x optical (40x HD)

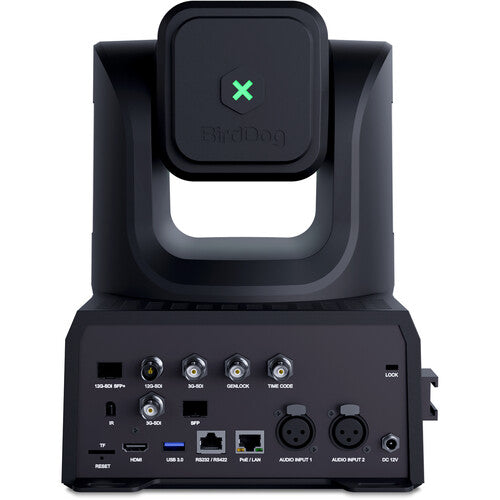

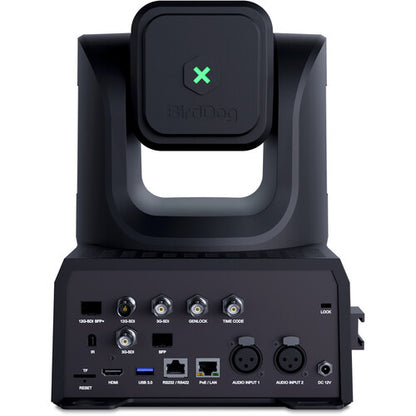

• Output Protocols: NDI®, SRT, RTSP, RTMP, HDMI, 3G-SDI

• AI Tracking: Next-generation human-like camera motion

• Mounting: XL Mount System (optional), truss, ceiling, tripod, studio grid

• Warranty: 5 years global
