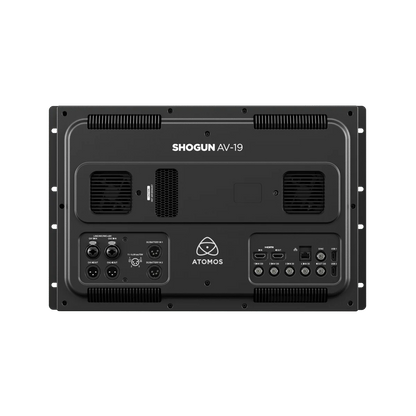

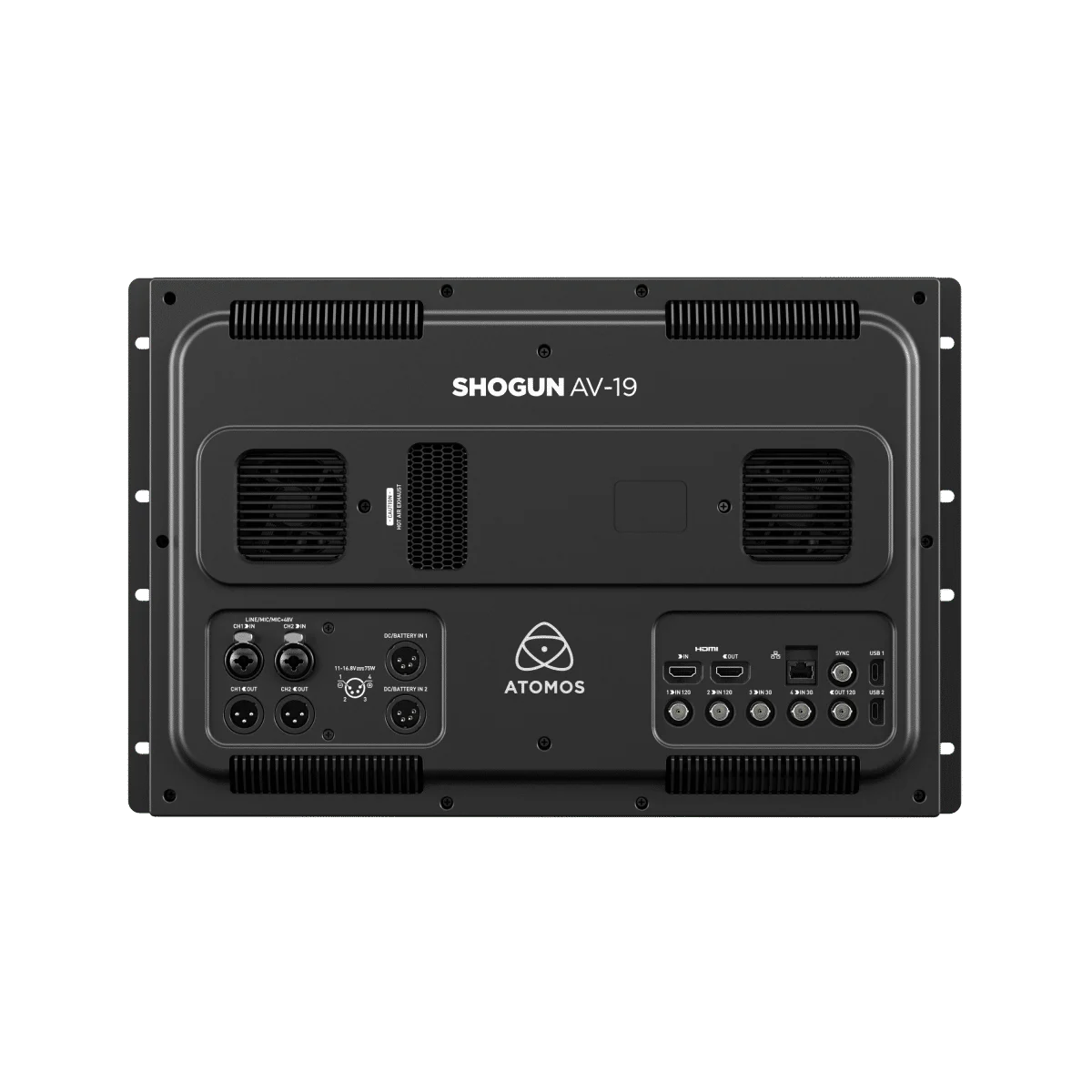

Atomos Shogun AV-19 / AV-19M 19-Inch 4K HDR Rackmount Monitor

The Atomos Shogun AV-19 is a professional 19-inch 4K HDR rack-mounted monitor, recorder, and switcher designed for broadcast studios, live production, outside broadcasts, video village, and multi-camera workflows.

Combining a large 4K HDR display with multi-camera switching, ISO recording, professional SDI and HDMI connectivity, and native NDI HX3 support, the Shogun AV-19 provides a versatile production control and monitoring solution in a 7RU rack-mountable form factor.

Monitor, record, and switch multiple camera feeds in real time. Record up to four isolated camera feeds alongside a fifth program output, giving production teams greater flexibility for live event recording, post-production workflows, and multi-camera content delivery.

Available from Pro Video Global, a Singapore-based professional video equipment supplier offering worldwide shipping.

Key Features

• 19-Inch 4K HDR Display: A large 3840 × 2160 display with 10-bit processing and DCI-P3 colour support for professional production monitoring.

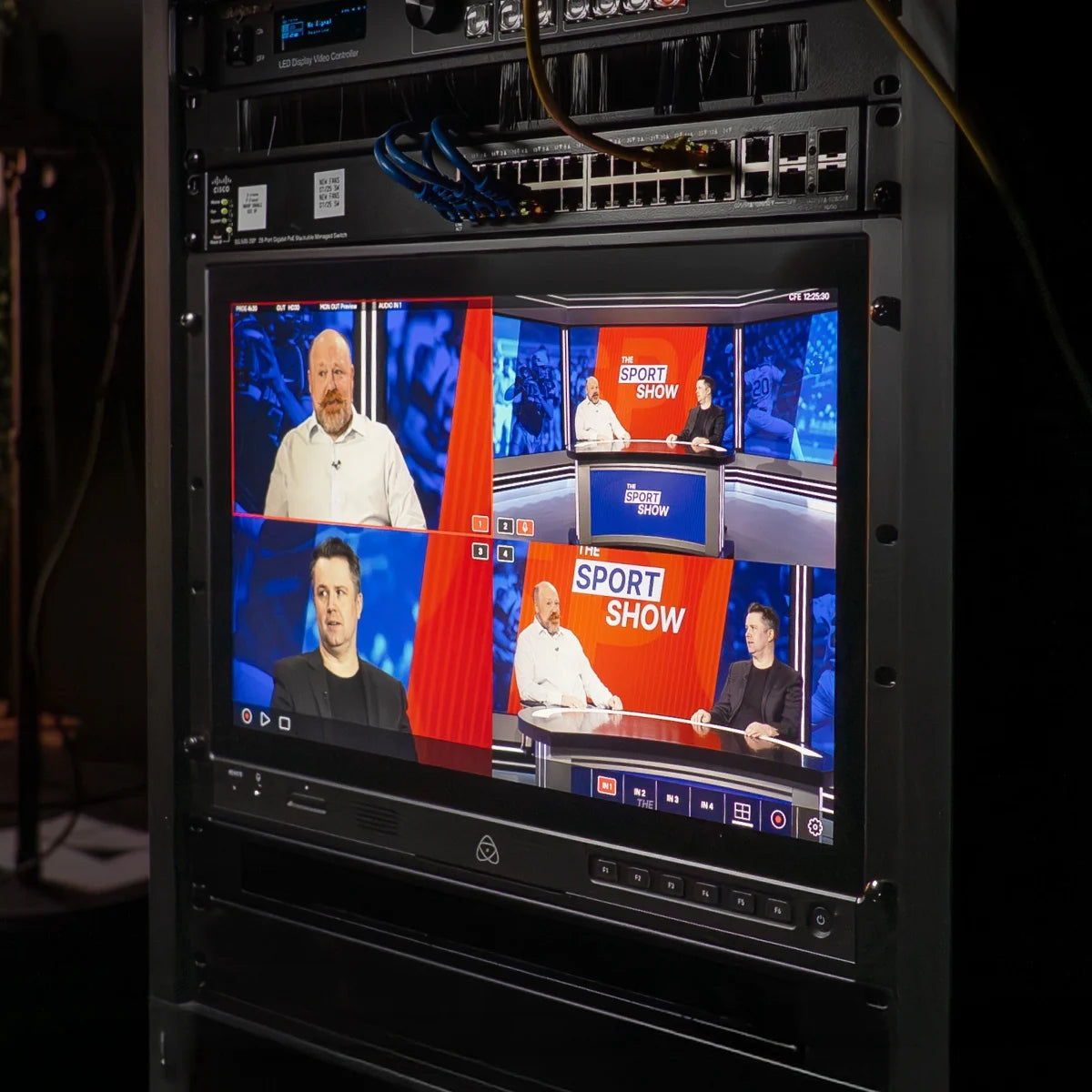

• 7RU Rack-Mount Design: A professional 19-inch rack form factor suitable for studio installations, broadcast racks, and mobile production systems.

• Multi-Camera Switching: Monitor, cue, and switch multiple camera feeds in real time for live production workflows.

• ISO and Program Recording: Record up to four isolated camera feeds plus a fifth program output for multi-camera recording and post-production.

• Professional Recording Codecs: Record Apple ProRes, ProRes RAW, and Avid DNx formats, subject to source compatibility and recording configuration.

• 12G-SDI and HDMI Connectivity: Two 12G-SDI inputs, two 3G-SDI inputs, 12G-SDI output, and HDMI input and output support professional video signal workflows.

• Native NDI HX3: Transmit and receive compatible video, audio, and metadata over Ethernet for IP-based production systems.

• Advanced Monitoring Tools: Includes EL Zone false colour, focus peaking, waveform, LUT viewing, and other professional image analysis tools.

• Professional Audio Integration: Two balanced XLR audio inputs with 48V phantom power, balanced XLR outputs, audio metering, and headphone monitoring.

• Camera Control: Supports compatible Canon, Fujifilm, Nikon, Panasonic, Sony, and Z CAM camera control workflows, subject to camera and connection compatibility.

• Custom Function Buttons: Assign frequently used monitoring, recording, and playback functions for faster operation during production.

Professional Multi-Camera Monitoring and Switching

The Shogun AV-19 is designed for productions that need more than a conventional video monitor.

Its large 19-inch display allows directors, technical directors, and camera operators to monitor multiple sources in a production environment. The integrated switching and recording capabilities help simplify workflows where separate monitoring, recording, and switching equipment would otherwise be required.

Record up to four isolated camera feeds while capturing a fifth program output. This provides flexibility for editing multi-camera productions, creating alternative cuts, and retaining individual camera footage for post-production.

For live production teams, the integrated monitor, recorder, and switcher can help reduce equipment complexity in studio racks, outside broadcast systems, and mobile production setups.

Native NDI HX3 for IP Video Production

With built-in Ethernet and native NDI HX3 support, the Shogun AV-19 can transmit and receive compatible video, audio, and metadata over a standard network connection.

This supports IP-based production workflows where video needs to move between compatible equipment without relying exclusively on traditional SDI cabling.

NDI functionality depends on the selected workflow, network configuration, and compatible equipment.

Professional Recording and Media Workflows

The Shogun AV-19 supports recording in Apple ProRes, ProRes RAW, and Avid DNx formats from compatible SDI and HDMI sources.

Recording options include internal CFexpress media and compatible external USB-C storage. Supported recording formats, resolutions, frame rates, and simultaneous ISO and program recording capabilities depend on the source signals and system configuration.

Storage media is sold separately. Confirm the required media performance and compatibility before purchase.

Technical Specifications

Specification	Details
Product	Atomos Shogun AV-19
Product Type	Rack-mounted monitor, recorder, and switcher
Display Size	19 inches
Display Resolution	3840 × 2160 4K UHD
Display Bit Depth	10-bit display processing
Colour Gamut	100% Rec.709, 99% DCI-P3
Rack Height	7RU
SDI Inputs	2 × 12G-SDI, 2 × 3G-SDI
SDI Output	1 × 12G-SDI
HDMI	1 × HDMI input, 1 × HDMI output
Recording Codecs	Apple ProRes, ProRes RAW, Avid DNx
Recording Media	CFexpress and compatible external USB-C storage
ISO Recording	Up to 4 isolated camera feeds plus a fifth program output
IP Video	Native NDI HX3 transmit and receive
Audio Inputs	2 × balanced XLR with 48V phantom power
Audio Outputs	Balanced XLR, HDMI/SDI embedded audio, headphone output
Audio Format	24-bit / 48kHz PCM
Camera Control	Compatible Canon, Fujifilm, Nikon, Panasonic, Sony, and Z CAM systems
Power Input	12–16.8V DC
Operating Power	75W
Dimensions	482 × 310 × 60mm
Weight	5.22kg

Applications

The Atomos Shogun AV-19 is suitable for:

• Broadcast studios and television production

• Live events and multi-camera recording

• Outside broadcast and mobile production racks

• Video village and director monitoring

• Corporate video and event production

• IP-based production systems using NDI HX3

• Multi-camera ISO recording and post-production workflows
