Atomos Ninja RAW — 5" 1500-Nit On-Camera HDMI Monitor Recorder with ProRes RAW & 6K Recording

Atomos Ninja RAW — 5" ProRes RAW On-Camera HDMI Monitor Recorder

The Atomos Ninja RAW is the most powerful 5-inch on-camera HDMI monitor-recorder Atomos has built at this price point — combining a 1500-nit HDR touchscreen (50% brighter than its predecessors), ProRes RAW and ProRes RAW HQ recording to CFexpress Type B, touchscreen camera control, and a full suite of professional monitoring tools. It bypasses your camera's internal compression entirely, capturing straight from the sensor to give you the full dynamic range, resolution, and bit-depth your camera is capable of.

Bypass your camera. Record what the sensor actually sees.

Most mirrorless cameras compress and limit their internal recordings — capping resolution, bit-depth, or frame rate to protect internal media and processing limits. The Ninja RAW breaks those limits. By recording the uncompressed or lightly compressed RAW signal directly over HDMI, you get up to 6Kp30 ProRes RAW — more resolution, more dynamic range, more colour information, and far more flexibility in post-production than any in-camera recording can offer.

Key features of the Atomos Ninja RAW

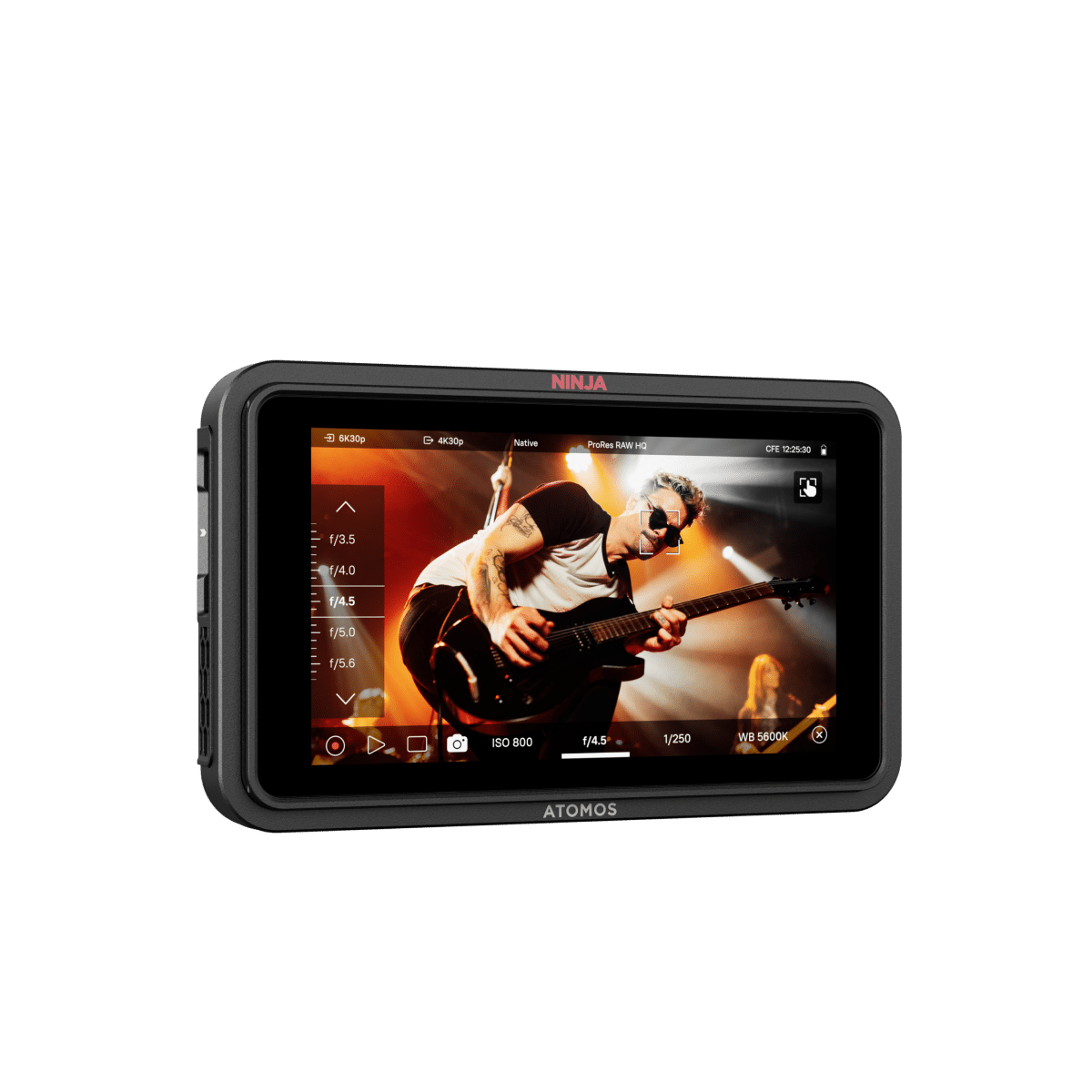

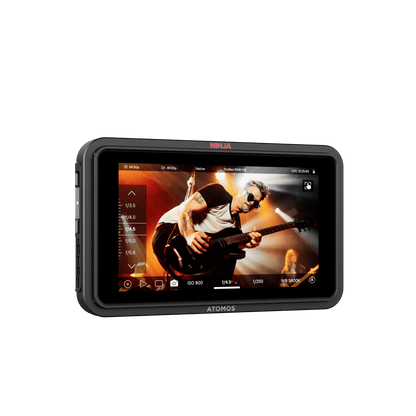

• 5.2-inch 1500-nit HDR touchscreen — 1920×1080, edge-lit, 50% brighter than previous Ninja models; see your image clearly in full daylight
• ProRes RAW & ProRes RAW HQ recording — plus ProRes 422 HQ, 422, LT, and H.265 (8/10-bit 4:2:2 and 4:2:0), all pre-activated out of the box
• Up to 6Kp30 RAW recording — 4Kp60 DCI/UHD, 1080p120; full resolution and frame-rate capability from your camera's HDMI output
• CFexpress Type B recording — high-speed, reliable media for sustained ProRes RAW capture; plus USB-C external storage option
• Touchscreen camera control — adjust ISO, shutter speed/angle, aperture, and white balance directly from the Ninja RAW screen; compatible with Canon, Fujifilm, Nikon, Panasonic, Sony mirrorless, and Z CAM E2 cameras over USB-C
• Touch to focus — tap the screen to direct your camera's AF to any point of interest, including focus tracking for moving subjects
• EL Zone false color exposure tool — stop-based colour coding for precise, consistent exposure in any lighting
• Full monitoring suite — waveform, RGB parade, vectorscope, focus peaking (colour/mono/edges), zebras, ARRI false color, anamorphic desqueeze (up to 2x), frame guides, SMPTE safe areas, LUT overlay (3D .cube files), 50/50 split, onion skin
• Real-time LOG-to-LUT preview — monitor in Rec.709 while recording LOG; supports Sony S-Log/S-Log2/S-Log3, Canon C-Log/C-Log2/C-Log3, ARRI LogC, Panasonic V-Log, Nikon N-Log, Fujifilm F-Log, RED, PQ, HLG
• SegmentPro continuous recording — automatically splits long recordings into user-defined file sizes without dropping a single frame
• Tally light — red when recording/live, green when on standby; essential for run-and-gun and live production setups
• Locking HDMI and USB-C cable adaptors included — Atomos' unique cable locking system prevents accidental disconnection on set

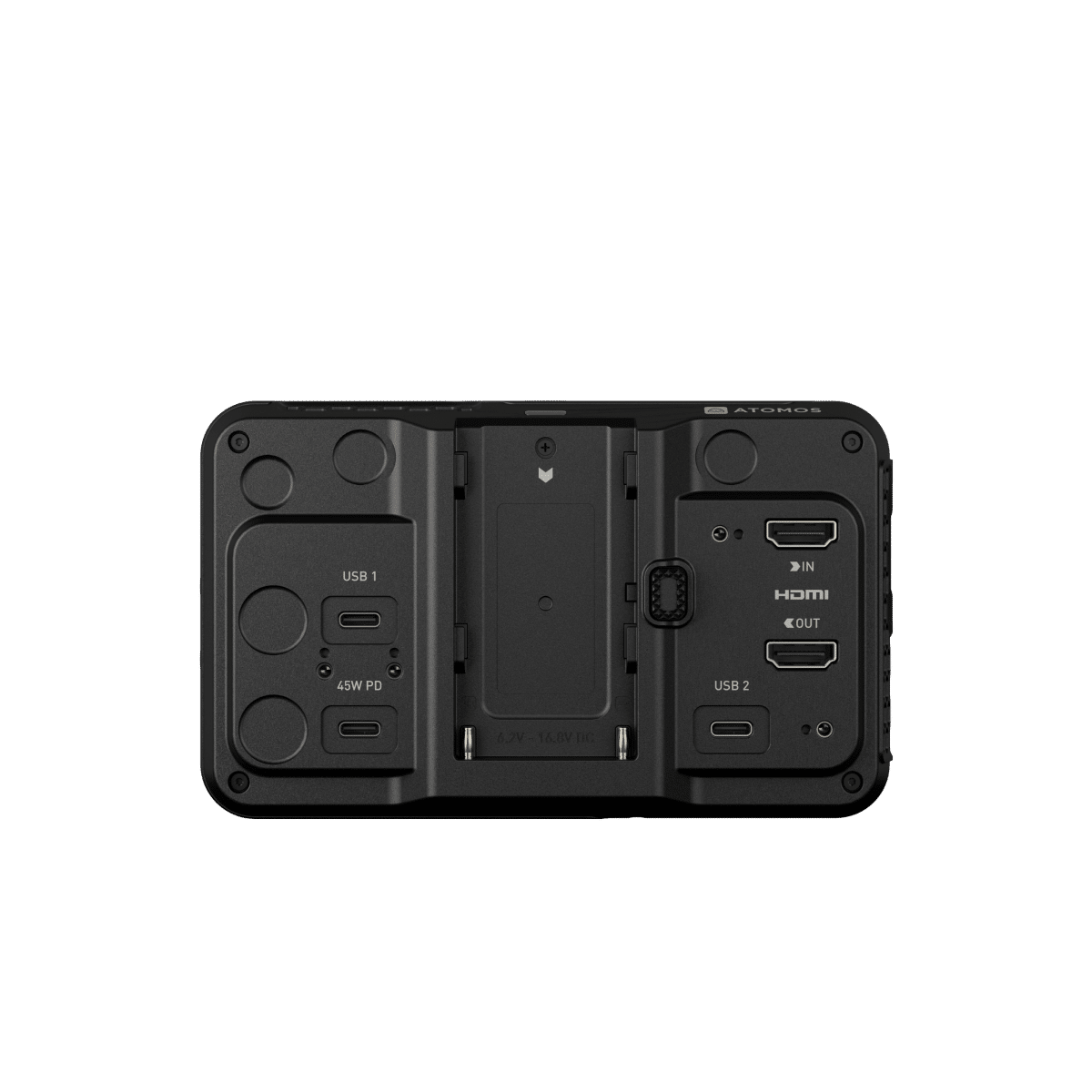

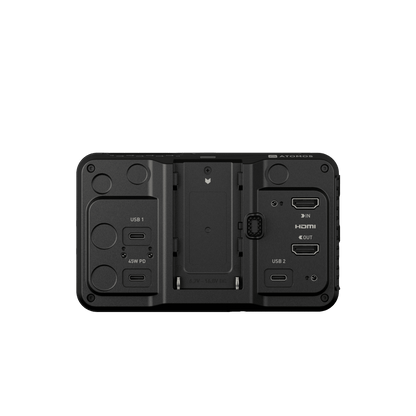

• Three USB-C ports — one for power, two for external storage or network adaptors
• Flexible power — NP-F Sony L-Series batteries (field-standard, sold separately), USB-C PD power banks up to 45W, or battery eliminator with DC adaptor
• Lightweight aluminium build — 400g, 151×92×36mm; fits any cage, shoulder rig, or gimbal setup
• 1/4"-20 and 3/8" mount points — top and bottom, anti-rotation design
• OTA firmware updates — update directly from the device over the internet; no computer required

Compatible with every major NLE

ProRes RAW files from the Ninja RAW open natively in Apple Final Cut Pro, DaVinci Resolve, Adobe Premiere Pro, and Avid Media Composer. There is no transcoding step, no proprietary format conversion — your RAW footage goes straight into your timeline with full RAW parameter control, including white balance, ISO, and exposure adjustment in post.

Who is the Atomos Ninja RAW for?

• Mirrorless and DSLR shooters who want to unlock the full potential of their Sony, Canon, Nikon, Panasonic, or Fujifilm camera
• Documentary and run-and-gun filmmakers who need a bright, reliable field monitor with serious recording chops
• Commercial and narrative cinematographers stepping up to a ProRes RAW workflow without the cost of a dedicated cinema camera
• Wedding and event videographers who want faster turnaround and better colour latitude from their mirrorless cameras
• Content creators and YouTubers who want maximum image quality with a simple, portable on-camera setup

Atomos Ninja RAW — technical specifications

New at NAB Show 2026. The Atomos Ninja RAW is the go-to on-camera HDMI monitor-recorder for mirrorless and hybrid cinema shooters who demand ProRes RAW quality in an affordable, lightweight on-camera package.
